A busy delivery schedule leaves little room for a truck that doesn't fit the job. Fleet managers moving freight between Mississauga, Brampton and Toronto have to consider cargo volume, weight, loading access and travel time before choosing a vehicle.
The 2024 Isuzu FVR, brings together a 26-foot Vanguard aluminum body, a 3,300 lb tuckaway liftgate and a 33,000 lb gross vehicle weight rating (GVWR). It also has a Cummins B6.7 diesel engine and Allison RDS 2500 six-speed automatic transmission.
Those specifications are useful starting points. The real question is whether the completed truck can carry your normal freight safely and reach every delivery location on the route.
View additional equipment
224-inch wheelbase · Rear air-ride suspension · 100-gallon aluminum fuel tank · Air brakes · Heated mirrors · Rear camera
Ratings describe the specified truck. GVWR and liftgate capacity are not verified cargo payload.
What Makes This 2024 Isuzu FVR a Class 7 Truck?
The featured Isuzu FVR has a 33,000 lb GVWR, placing it within the Class 7 weight range. GVWR is the manufacturer's maximum rated weight for the loaded vehicle, including the truck, installed body, fuel, occupants, equipment and freight. It is not a 33,000 lb cargo allowance.
For Stock # I24035, the main listed specifications are:
- Engine: Cummins B6.7 diesel
- Transmission: Allison RDS 2500 six-speed automatic
- GVWR: 33,000 lb
- Front axle rating: 12,000 lb
- Rear axle rating: 21,000 lb
- Body: 26-foot Vanguard aluminum cargo body
- Liftgate: 3,300 lb tuckaway tailgate loader
- Other listed equipment: Rear air-ride suspension, 224-inch wheelbase, 100-gallon aluminum fuel tank, air brakes, heated mirrors and rear camera
These ratings and features describe this specific configuration, not every FVR. Confirm its completed dimensions and weight before assigning it to a route.
How Does the Cummins and Allison Drivetrain Fit GTA Routes?
Cummins B6.7 Diesel for Regional Distribution
The Cummins B6.7 diesel engine is part of this truck's equipment package. For a fleet running between industrial parks and retail customers, the practical review is how the engine and overall gearing suit typical loads, grades, highway travel and time spent idling.
A morning dispatch might start at a Mississauga warehouse, cross Highway 401 toward Brampton and finish with multiple stops in Toronto. That means a mix of sustained highway operation, congestion and slower access roads. Review the loaded duty cycle rather than estimating performance from the engine name alone.
Allison RDS 2500 Automatic for Stop-and-Go Driving
The six-speed Allison RDS 2500 automatic removes the need for manual gear changes as drivers move between Highway 401, Highway 407, the QEW and urban streets. That is worth considering for routes with frequent stops or drivers working across different delivery assignments.
No specific fuel economy, driving range or travel-time gain should be assumed without operating data from your own routes.
How Much Cargo Can a 33,000 lb GVWR FVR Carry?
Usable cargo payload = GVWR − completed vehicle weight − occupants and carried equipment.
Start with the 33,000 lb GVWR, then subtract the truck's actual ready-to-operate weight, including the Vanguard body, liftgate, installed equipment, fuel and other permanently fitted items. Subtract the driver, passengers and any additional carried equipment not already included in that measured weight. What remains is the calculated cargo allowance, subject to axle and legal limits.
For example, if a fully equipped truck weighed 20,000 lb and occupants plus loose equipment weighed 500 lb, the arithmetic would leave 12,500 lb for cargo. This is an illustration, not a verified payload figure for Stock # I24035.
Estimate Usable Cargo Payload
Usable cargo payload = GVWR − completed vehicle weight − occupants and carried equipment
Select an example completed vehicle weight to see how cargo allowance changes. Each scenario assumes 500 lb for occupants and loose equipment not already included in the completed vehicle weight.
These are illustrative calculations, not verified weight figures for Stock # I24035.
Example Payload Calculations
| Completed weight | Occupants/equipment | Cargo allowance |
|---|---|---|
| 18,000 lb | 500 lb | 14,500 lb |
| 20,000 lb | 500 lb | 12,500 lb |
| 22,000 lb | 500 lb | 10,500 lb |
| 24,000 lb | 500 lb | 8,500 lb |
Planning examples only. Obtain the actual completed vehicle weight, including body, liftgate, fuel and installed equipment. Avoid counting occupants or equipment twice. Confirm front and rear axle weights, tire capacities, registration and applicable Ontario operating limits before determining a permitted load.
Do not enter a guessed truck weight as a verified result. The calculated figure is a planning estimate, not authorization to load that amount. Confirm front and rear axle loads and applicable Ontario limits.
Why Front and Rear Axle Ratings Still Matter
This truck lists a 12,000 lb front axle rating and 21,000 lb rear axle rating. Freight placement can overload an axle even when the truck remains below its total GVWR.
Before dispatch, check:
- A certified weight for the completed vehicle in its operating configuration
- Loaded front and rear axle weights, including how pallets are positioned
- Applicable Ontario weight, registration and road restrictions
- Weight of drivers, tools, pallet jacks and other loose equipment
- Load securement and any body or liftgate manufacturer's limits
One number isn't enough. Use actual scale measurements and applicable operating limits to establish the safe load.
What Can a 26-Foot Vanguard Aluminum Body Do for Distribution?
A 26-foot box body provides enclosed length for bulky freight such as furniture, boxed retail goods, commercial supplies and general distribution loads. For a business collecting inventory in Brampton and making several GTA deliveries, added cargo length may help group shipments on one run when the weight and route allow it.
Space still needs checking. Exterior body length does not confirm usable interior length, cubic volume, pallet count or door opening. Freight dimensions, stacking rules, loading pattern and securement points determine how much of the space can actually be used.
Where the 3,300 lb Tuckaway Liftgate Helps
The 3,300 lb-rated tuckaway liftgate provides a mechanical option for suitable loads at delivery sites without a compatible raised dock. When not in use, its platform folds beneath the rear of the body.
- Mississauga warehouses: A compatible loading dock may support direct loading while the gate stays stowed.
- Brampton commercial routes: Mixed dock and ground-level receiving locations make an alternative unloading method useful.
- Toronto storefronts: Street-level deliveries may call for a liftgate, subject to stopping rules, safe ground conditions and rear clearance.
- Furniture and equipment drops: Verify the weight and dimensions of each item or loaded handling device against the liftgate's operating requirements.
The 3,300 lb liftgate rating is not the truck's overall cargo payload. Load position, platform dimensions and manufacturer instructions matter too.
For a closer look at this configuration, review the 2024 Isuzu FVR with its 26-foot Vanguard body, Stock # I24035 .
2024 Isuzu FVR Photo Gallery

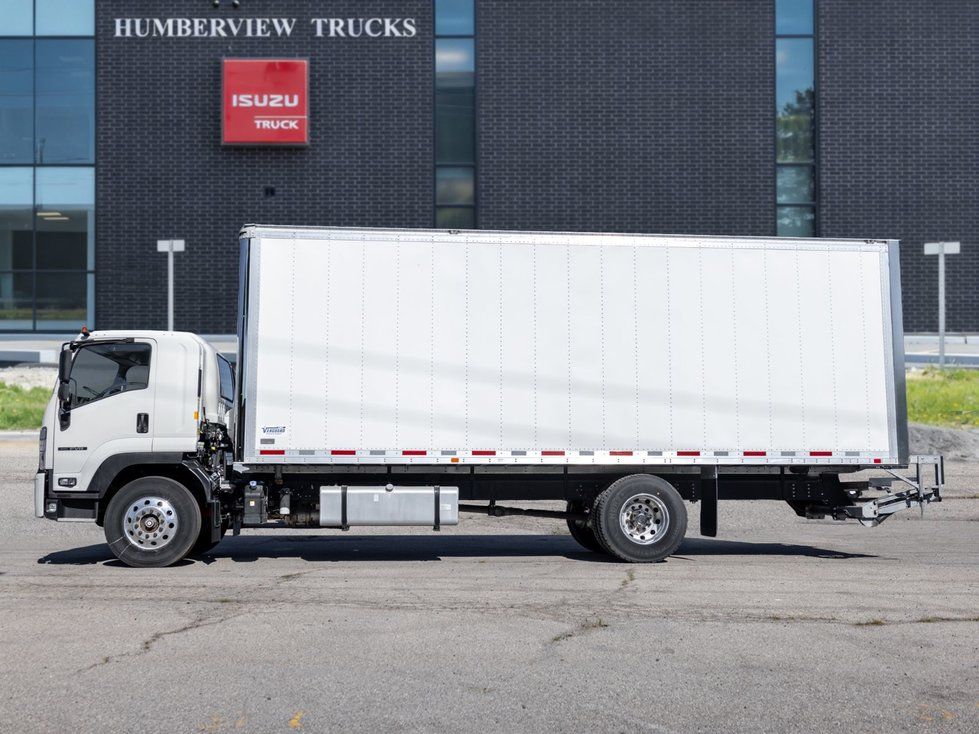

Stock # I24035 | 26-foot Vanguard aluminum body with 3,300 lb tuckaway liftgate
Swipe or use Previous and Next to browse the vehicle photos.
Will a 26-Foot Box Truck Fit Your Delivery Sites?
A longer cargo body can reduce the need to split bulky shipments, but access may be more demanding at smaller receiving locations. This FVR has a listed 224-inch wheelbase; wheelbase alone does not establish turning radius or required loading space.
Measure the route before adding the truck to a schedule. Check loading-bay length, turning space, gate and overhead clearances, rear clearance for liftgate deployment and legal stopping locations. Downtown Toronto storefronts and older commercial sites may need a different unloading plan than larger Peel Region facilities.
Rear Air-Ride Suspension and Driver Equipment
The listed rear air-ride suspension can help cushion road impacts on rough industrial access roads or winter-damaged pavement. It does not replace secure freight loading or prevent every instance of cargo damage.
Air brakes, heated mirrors and a rear camera are also listed for this unit. Confirm how drivers will use these systems during yard manoeuvres, reversing and winter delivery work. Apple CarPlay and Android Auto are listed as well; device compatibility and safe use should be checked in the cab.
How Should Fleet Managers Evaluate the Total Operating Fit?
Before comparing a medium-duty truck for sale in Ontario, write down your actual operating requirement. The best configuration is the one that handles repeated jobs without creating avoidable loading delays or unsuitable routes.
- Record typical and peak shipment weights, package sizes and daily stop counts.
- Weigh the completed truck and validate axle loading with a representative freight plan.
- Check dock heights, liftgate access, body openings and delivery-site clearance.
- Review driver licensing, operating obligations and scheduled service needs.
- Compare support for maintenance, parts, replacement planning and commercial financing.
The 100-gallon aluminum fuel tank is a useful specification for route planning, but tank size alone does not establish range or operating cost. Consumption depends on load, idling, traffic and driving conditions.
Common Questions About the 2024 Isuzu FVR
Do all FVR models have a 26-foot box truck with a liftgate?
No. Each vehicle is configured differently. However, Stock # I24035 is specified with a 26-foot Vanguard aluminum body and a 3,300 lb tuckaway liftgate. Contact us for more details.
Does 33,000 lb GVWR mean it can carry 33,000 lb of freight?
No. GVWR includes the entire loaded vehicle. Cargo allowance can only be calculated after accounting for completed truck weight, occupants and carried equipment, then confirming axle and legal limits.
Is the Isuzu FVR suitable for deliveries across Mississauga and Brampton?
It may suit routes involving bulkier shipments and a mix of loading docks and ground-level receiving. Suitability depends on verified payload, site access, delivery frequency and the actual freight.
Is a Class 7 box truck the right choice for downtown Toronto?
It depends on the delivery locations. A 26-foot body may be useful for cargo volume, but turning, legal stopping, unloading clearance and overhead restrictions must be verified.
Review an Isuzu FVR Configuration With Humberview Isuzu Trucks
If a 26-foot box truck aligns with your fleet plan, explore Isuzu FVR trucks and available configurations. Learn why businesses work with Humberview Isuzu Trucks for application-focused support, and review the commercial financing application as part of your purchasing process.
Choosing the Right Truck Starts With the Route
For GTA freight operations, cargo space, payload and unloading access must work together. The 2024 Isuzu FVR offers a specific combination of Class 7 chassis capacity, a 26-foot Vanguard body, an automatic drivetrain and a tuckaway liftgate.
That combination deserves a practical test against your normal dispatch schedule. Confirm the actual completed vehicle weight, axle loads, cargo measurements and receiving-site access before committing to a unit. Humberview Isuzu Trucks in Mississauga can help you discuss how this FVR configuration fits your commercial requirements.
